Bones Of Elbow Joint

The elbow is one of the most complex and frequently used joints in the human body, acting as a crucial hinge that allows for a wide range of motion. To understand how this joint functions, one must first look at the bones of the elbow joint. The elbow is not merely a single joint but a complex linkage that connects the upper arm to the forearm, enabling us to lift, pull, push, and rotate our hands with precision. A deep dive into the anatomy of these bones provides essential insights into how injuries occur and how this remarkable structure remains stable during daily activities.

Table of Contents

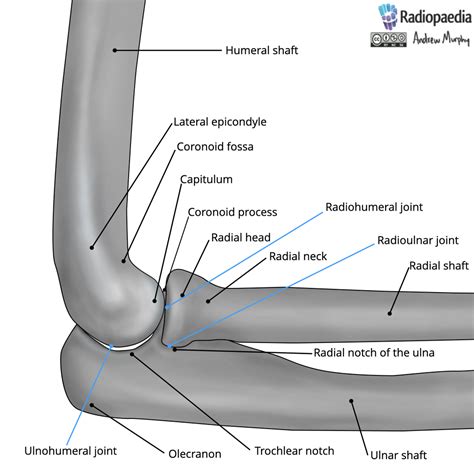

Anatomy of the Bones of the Elbow Joint

The elbow joint is primarily composed of the articulation between three distinct bones. These bones work in harmony to facilitate two main types of movement: flexion and extension (bending and straightening) and supination and pronation (rotating the forearm). The structural integrity of the elbow relies on the precise fit of these three components:

The Humerus: The long bone of the upper arm, which forms the top part of the elbow joint.
The Ulna: The larger bone of the forearm, situated on the medial side (the side closer to the body).
The Radius: The smaller bone of the forearm, located on the lateral side (the side closer to the thumb).

Together, these bones create a hinge joint known as the humeroulnar joint and a pivot joint known as the proximal radioulnar joint. Understanding the specific roles of each bone is vital for grasping the mechanics of the arm.

Detailed Overview of Each Bone

The Humerus

The humerus acts as the foundation for the elbow. The distal end of the humerus—the part furthest from the shoulder—features two prominent surfaces known as the trochlea and the capitulum. The trochlea is a spool-shaped structure that articulates with the ulna, while the capitulum is a rounded, knob-like surface that articulates with the radius. Above these surfaces lie the medial and lateral epicondyles, which are the bony bumps you can feel on either side of your elbow. These epicondyles serve as essential attachment points for the various tendons and ligaments that control wrist and hand movement.

The Ulna

The ulna is the primary stabilizer of the elbow joint. Its most recognizable feature is the olecranon process, which is the “point” of your elbow that you feel when you bend your arm. The olecranon fits perfectly into a corresponding depression on the humerus called the olecranon fossa when the arm is fully straightened. Another critical part of the ulna is the trochlear notch, a U-shaped structure that wraps around the trochlea of the humerus, allowing for the stable hinge movement of the joint.

The Radius

The radius is unique because it allows the forearm to rotate. The head of the radius is disc-shaped and articulates with the capitulum of the humerus and the radial notch of the ulna. This interaction is responsible for the ability to flip the palm up (supination) and down (pronation). While the ulna is the primary hinge stabilizer, the radius is the essential component for rotational movement.

Bone	Primary Function	Key Anatomical Feature
Humerus	Provides structural support and hinge base	Trochlea & Capitulum
Ulna	Provides stability for hinge action	Olecranon Process
Radius	Allows rotational movement (pronation/supination)	Radial Head

How the Bones Work Together

The synergy between the bones of the elbow joint is supported by a robust network of ligaments and cartilage. The articular cartilage covers the ends of the bones, acting as a shock absorber that allows the surfaces to glide smoothly against one another without friction. If this cartilage wears down—often due to age or repetitive stress—it can lead to conditions like osteoarthritis, which affects the bone-to-bone interaction within the elbow.

Furthermore, the joint is held together by the medial collateral ligament (MCL) and the lateral collateral ligament (LCL). These ligaments prevent the bones from moving too far out of their alignment, ensuring that the hinge stays focused on its primary path of motion. Without this rigid skeletal structure and the accompanying soft tissue, the arm would lack the leverage required to carry heavy objects or perform delicate tasks.

⚠️ Note: If you experience sharp, localized pain or swelling near the bony prominences of the elbow, it may indicate a ligament strain or bone injury; consulting a medical professional for an X-ray is the standard procedure to rule out fractures.

Common Issues Affecting Elbow Bones

Because the elbow is a complex pivot and hinge, it is susceptible to various mechanical stresses. Fractures, such as an olecranon fracture, often occur due to direct impact or falls. Additionally, epicondylitis—commonly known as tennis elbow or golfer's elbow—involves inflammation of the tendons attached to the bony epicondyles of the humerus. While these are technically soft tissue injuries, they often involve the attachment points on the bones, highlighting the interconnected nature of the musculoskeletal system.

Degenerative conditions are also common as we age. When the bones of the elbow joint lose their smooth cartilaginous surface, the underlying bone may become exposed, leading to stiffness and pain. Physical therapy and specific strengthening exercises are often recommended to maintain the musculature surrounding these bones, which can help offload pressure from the joint itself.

Maintenance and Long-Term Health

To keep the elbow healthy, focus on maintaining the strength of the surrounding muscles, such as the biceps and triceps. These muscles act as the primary movers that protect the integrity of the bone articulation. Regular, low-impact exercise can improve blood flow to the joint, which is vital for the health of the tissues surrounding the bones. Maintaining a healthy diet rich in calcium and vitamin D is also essential to ensure that the bone density remains high, preventing brittleness over time.

💡 Note: Always perform a proper warm-up before engaging in repetitive upper-body activities to prepare the ligaments and bones for mechanical stress.
