The human skull is a marvel of biological engineering, consisting of numerous interlocking bones that provide protection for the brain and sensory organs. Among these, the temporal bone is perhaps the most complex due to its intricate structure and multifaceted functions. Specifically, the squamous portion of temporal bone serves as a critical, plate-like component that forms the lateral wall of the cranium. Understanding its anatomy, relationships with surrounding structures, and clinical significance is essential for students of anatomy, neurosurgeons, and medical professionals alike.
Anatomical Overview of the Squamous Portion of Temporal Bone

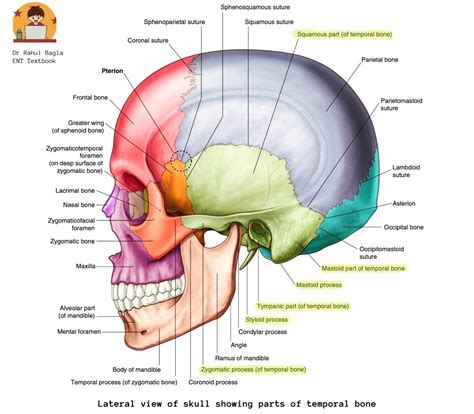

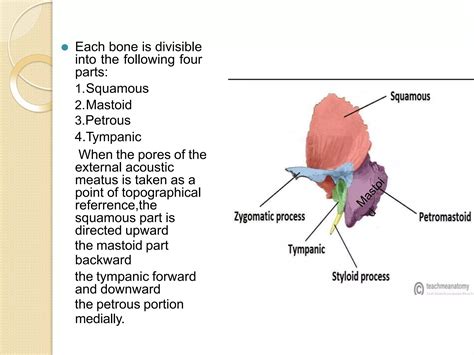

The temporal bone is divided into four distinct parts: the squamous, mastoid, petrous, and tympanic parts. The squamous portion of temporal bone, often referred to as the squama temporalis, is the largest and most superior part of this complex bone. It is characterized by its thin, flat, and scale-like appearance, which is where it derives its name from the Latin word “squama,” meaning scale.
This bone segment is primarily located in the temporal fossa, a shallow depression on the side of the skull. It articulates with several other bones, forming essential sutures that provide stability to the cranial vault. The primary articulations include:
- Superiorly: The parietal bone, forming the squamosal suture.
- Anteriorly: The greater wing of the sphenoid bone, forming the sphenosquamous suture.
- Inferiorly: It integrates with the petrous and tympanic portions of the temporal bone itself.
Key Anatomical Landmarks
The squamous portion of temporal bone is not merely a flat plate; it features distinct landmarks that facilitate muscle attachment and structural integrity. The most prominent of these is the zygomatic process.

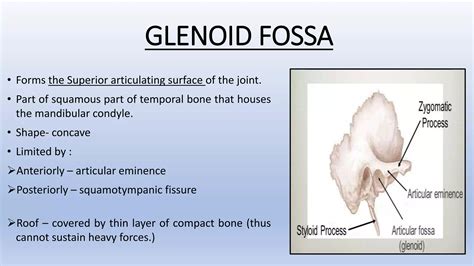

The zygomatic process is a long, arched projection that extends anteriorly from the lower part of the squama. It articulates with the temporal process of the zygomatic bone to form the zygomatic arch, which is easily palpable on the side of the face. Below the posterior root of this process lies the mandibular fossa, a concave depression that serves as the socket for the mandibular condyle, effectively creating the temporomandibular joint (TMJ).

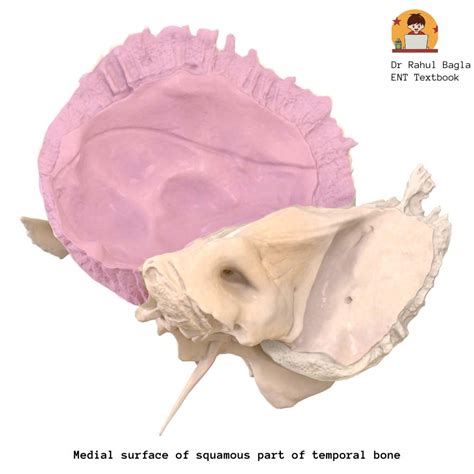

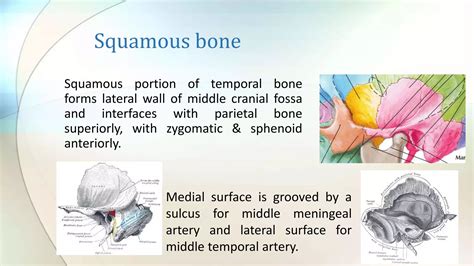

Furthermore, the internal surface of the squamous portion is marked by several grooves. These depressions are caused by the passage of the middle meningeal vessels, which supply the dura mater. Because the bone here is notably thin—often called the "pterion" area—these vessels are at high risk during blunt force trauma to the side of the head.
Functional Significance and Clinical Relevance
While the squamous portion of temporal bone is thin, it plays a vital role in protecting the brain and facilitating jaw movement. The temporal muscle, one of the primary muscles of mastication, originates from the temporal fossa, which encompasses the outer surface of the squamous portion. This highlights how the bone provides a structural anchor for the muscles required for chewing.
From a clinical perspective, the squamous portion of temporal bone is a high-interest area in neurosurgery and emergency medicine. Because it is relatively thin, it is a common site for skull fractures. A fracture in this region is particularly dangerous due to the underlying middle meningeal artery. If the artery is ruptured during a fracture, it can lead to an epidural hematoma, a life-threatening condition characterized by the rapid accumulation of blood between the skull and the dura mater.
| Feature | Description |
|---|---|
| Shape | Thin, flat, scale-like plate |
| Primary Muscle Attachment | Temporalis muscle |
| Key Articulation | Parietal bone (squamosal suture) |
| Vascular Association | Middle meningeal vessels |
| Joint Formation | Temporomandibular Joint (TMJ) |
💡 Note: The area where the squamous portion of the temporal bone meets the frontal, parietal, and sphenoid bones is known as the pterion. This H-shaped suture is a critical clinical landmark because the bone is thinnest here and shields the middle meningeal artery.
Diagnostic Considerations and Imaging
In modern medicine, assessing the integrity of the squamous portion of temporal bone is typically achieved through high-resolution Computed Tomography (CT) scans. Because CT imaging excels at identifying bony density changes, it is the gold standard for evaluating suspected fractures, erosions caused by cholesteatomas (in the ear region), or congenital anomalies.
When reviewing these scans, clinicians look for:
- Displacement of bone fragments.
- Signs of intracranial hemorrhage adjacent to the squamous plate.
- Integrity of the zygomatic process and the TMJ articulation.
Radiologists must be cautious to distinguish normal anatomical variations, such as thin areas of bone, from actual fractures. The internal surface grooves for the meningeal vessels should not be confused with fracture lines, as they follow a predictable, branching pattern unlike the jagged trajectory of a traumatic break.
Reflecting on the Temporal Architecture
The study of the squamous portion of temporal bone reveals the delicate balance between structural protection and anatomical versatility. Its flat, expansive surface offers the perfect foundation for the powerful muscles of mastication, while its thinness necessitates careful clinical consideration in trauma settings. By anchoring the zygomatic arch and serving as a gateway to the complex internal structures of the ear, this bone is far more than just a wall; it is a nexus of function, movement, and vital protection. As medical imaging and surgical techniques continue to advance, our appreciation for these anatomical components grows, ensuring better patient outcomes through a deeper understanding of the cranial structure.
