Discovering water leaking from evaporator coil units is a common, yet often alarming, issue for homeowners. While some condensation is a normal byproduct of your air conditioner's operation, active leaking can signal underlying problems that require immediate attention. If left unaddressed, this moisture can lead to significant water damage, mold growth, and inefficient cooling performance. Understanding why your system is producing excess water is the first step toward restoring comfort and protecting your home from potential structural damage.
Why Is Your Evaporator Coil Leaking?

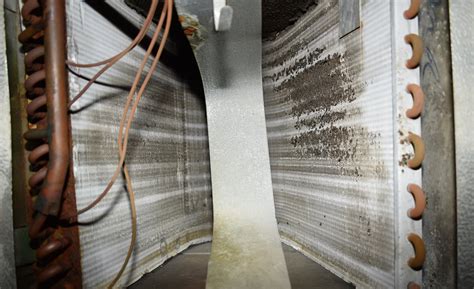

To diagnose the issue, you must first understand the cooling process. Your evaporator coil, located inside your indoor air handler, absorbs heat from your home’s air. As the refrigerant inside the coil chills the metal, moisture from the air condenses on the surface. Normally, this water drips into a drain pan and is channeled safely away through a condensate drain line. When you notice water leaking from evaporator coil assemblies, it is almost always due to an interruption in this standard drainage process.
Common culprits behind this issue include:
- Clogged Condensate Drain Line: Algae, sludge, or debris often build up in the drain line, creating a blockage that forces water to back up and overflow.
- Dirty Air Filters: A restricted filter reduces airflow over the coils, causing them to get too cold and freeze over. When the ice melts, it creates more water than the drain system can handle.
- Low Refrigerant Levels: Similar to a dirty filter, low refrigerant causes the coil temperature to drop rapidly, leading to ice formation and subsequent water overflow.

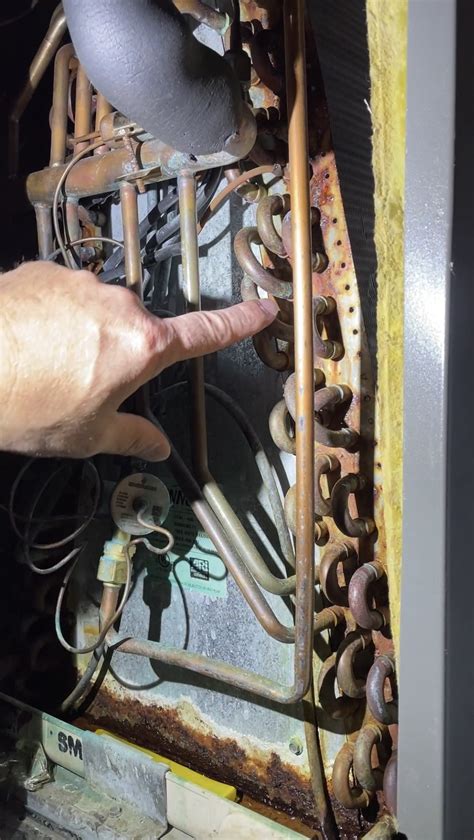

- Cracked or Rusted Drain Pan: Over time, the drain pan underneath the coil can develop cracks or rust, allowing water to escape directly into your system or living space.
- Improper Installation: If the unit or the drain line was not installed with the correct pitch, water cannot flow toward the outlet and will pool instead.
Diagnostic Checklist for Water Leaks
Before calling a professional, you can perform a few basic checks to identify the severity of the problem. Use the following table to help guide your initial assessment of the symptoms.
| Symptom | Likely Cause | Urgency |
|---|---|---|
| Water pooling near the furnace | Clogged drain line | Moderate |
| Ice visible on the coils | Dirty filter or low refrigerant | High |
| Visible cracks in the drain pan | Structural damage | High |
| Water dripping constantly while off | Damaged drain line or pan | Moderate |
Steps to Resolve Evaporator Coil Leaks
If you have identified a clogged drain line, you can often resolve the issue with some basic maintenance. Always turn off the power to your HVAC system before attempting these repairs.
- Locate the Drain Line: Find the PVC pipe exiting your HVAC unit. It is usually a white or clear pipe.
- Clear the Blockage: Use a wet/dry shop vacuum to suction debris out of the drain line from the outside exit point.
- Flush the Line: Some units have a small access port near the coil. Pour a cup of distilled white vinegar down this port to kill algae and clear remaining sludge.
- Inspect the Filter: Check your air filter. If it is dirty, replace it immediately to restore proper airflow and prevent the coil from freezing again.
- Check for Ice: If the coils are frozen, set your thermostat to "Fan Only" to force air over the coils and melt the ice quickly. Do not attempt to chip the ice away, as you may puncture the coil.
⚠️ Note: If you find low refrigerant levels or notice that the coils continue to freeze despite a clean filter, avoid attempting a DIY repair. Refrigerant handling requires professional licensing and specialized equipment.
Preventative Maintenance Tips
Proactive care is the best way to prevent water leaking from evaporator coil components. By adhering to a regular maintenance schedule, you can extend the life of your unit and maintain optimal cooling efficiency.
- Schedule Annual Inspections: Have a licensed HVAC technician clean your system and inspect drainage components at least once a year.
- Replace Filters Regularly: Change your air filters every 30 to 90 days, depending on usage and household conditions.
- Monitor Humidity Levels: Use a dehumidifier in highly humid climates to reduce the workload on your air conditioning system.
- Keep the Area Clear: Ensure the space around your indoor unit is clean and free of stored items that could block drainage or ventilation.
Addressing the issue of water leaking from your evaporator coil quickly is essential for maintaining the health of your home and your HVAC system. While minor issues like a clogged drain line can often be resolved with routine maintenance, persistent leaks—especially those involving ice buildup or structural damage—should be evaluated by a trained technician to avoid costly repairs. By staying proactive with air filter changes and scheduling seasonal check-ups, you can ensure that your system continues to run efficiently and keeps your living space dry and comfortable throughout the cooling season. If you encounter signs of failure that go beyond simple blockage, relying on professional expertise will always be the safest and most effective path forward.
