If you have ever pressed down on your brake pedal only to find it feeling unnaturally hard or unresponsive, you might be dealing with a vacuum brake booster leak. The brake booster is a critical component in your vehicle’s braking system, designed to multiply the force you apply to the brake pedal, making it easier to bring your car to a safe stop. When this component develops a leak, it compromises your vehicle's safety and necessitates immediate attention. Understanding how to diagnose and address this issue can save you from dangerous driving situations and expensive repairs down the line.
What is a Vacuum Brake Booster?

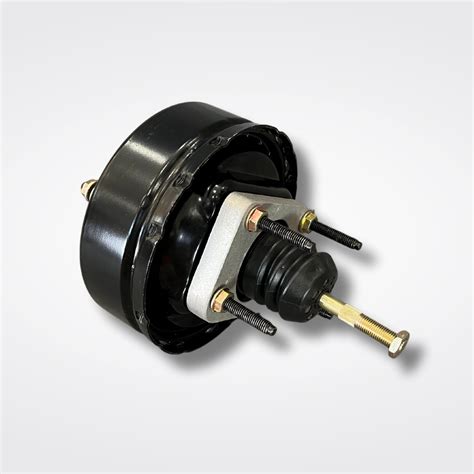

The vacuum brake booster—often referred to as the power brake booster—is a canister-shaped component located between the brake pedal and the master cylinder. Its primary job is to provide power assistance. It utilizes the vacuum generated by the engine (or a dedicated vacuum pump in some diesel or hybrid vehicles) to amplify the force exerted by your foot.
Inside the unit is a rubber diaphragm that divides the booster into two chambers. When you press the pedal, a valve opens, allowing atmospheric pressure into one side of the diaphragm while maintaining vacuum on the other. This pressure differential pushes against the master cylinder, effectively doing the “heavy lifting” for you.
Symptoms of a Vacuum Brake Booster Leak
Identifying a failing booster early can prevent total brake failure. Keep an eye out for these common indicators:
- Hard Brake Pedal: If the pedal feels stiff or requires significant effort to push, the booster is likely not providing assistance.
- Hissing Sound: A distinct hissing noise inside the cabin when the brake pedal is pressed is a classic sign of a ruptured internal diaphragm.
- Engine Misfires or Rough Idle: Because the booster is connected to the engine’s vacuum source, a large leak acts as a vacuum leak for the engine, causing rough running or even stalling.
- Increased Stopping Distance: You may notice the car takes much longer to come to a complete stop than usual.
- Changes in Engine RPM: You might notice the idle speed fluctuates when you step on the brake pedal.
| Symptom | Likely Cause |
|---|---|
| Hissing noise inside the car | Ruptured internal diaphragm |
| Hard pedal/High effort | Vacuum loss or check valve failure |
| Engine running lean/stalling | Vacuum leak affecting intake manifold |
| Fluid leaking into booster | Master cylinder seal failure |
How to Diagnose a Leak
You can perform a simple test in your driveway to confirm if you are dealing with a vacuum brake booster leak. Follow these steps:
- The Static Test: With the engine off, pump the brake pedal several times to deplete any stored vacuum. Then, hold your foot firmly on the pedal while starting the engine. If the pedal drops slightly, the booster is likely functional. If it stays rock hard, there is a loss of boost.
- The Vacuum Test: With the engine running, press and hold the brake pedal. While holding it, turn the engine off. Keep your foot on the pedal for about 30 seconds. If the pedal rises (pushes back against your foot), the booster is losing vacuum.

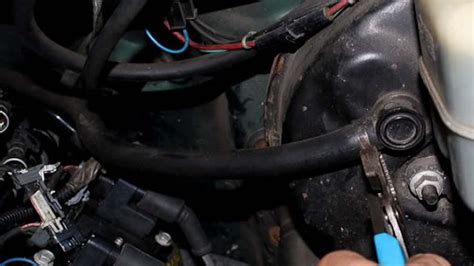

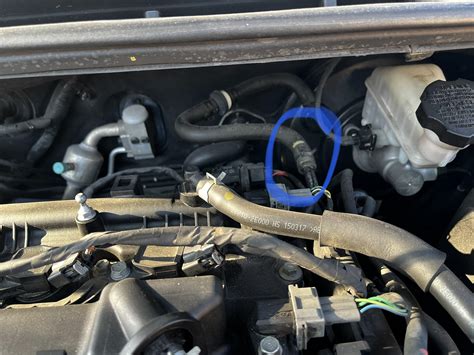

- Inspect the Check Valve: Locate the vacuum hose leading into the booster. Pull out the check valve and inspect it. It should allow air to pass in one direction only. If it’s loose or cracked, it could be the source of your leak.
⚠️ Note: Always ensure your vehicle is parked on level ground and the parking brake is engaged before performing any diagnostic tests on the braking system.
Common Causes of Failure
While the booster is a robust component, it is susceptible to wear over time. The most frequent culprit is the rubber diaphragm, which can dry out, crack, or tear after years of constant expansion and contraction. Additionally, the seals around the master cylinder can degrade, allowing brake fluid to seep into the booster, which will rapidly destroy the rubber internal components. Finally, external vacuum hoses can dry-rot, causing a loss of vacuum supply before it even reaches the booster canister.
Addressing the Issue
In most cases, a leaking brake booster cannot be repaired internally due to the way the canisters are crimped or sealed at the factory. The standard solution is to replace the unit entirely. This involves disconnecting the vacuum line, unbolting the master cylinder (without disconnecting the brake lines if possible to avoid bleeding the system), and removing the booster from the firewall.
💡 Note: If you choose to replace the booster, it is highly recommended to inspect your master cylinder seals simultaneously to ensure that fluid has not contaminated the new unit.
Dealing with a faulty brake booster is not just a maintenance inconvenience; it is a critical safety matter. The vacuum brake booster leak symptoms described above—especially the hard pedal and hissing noises—are your vehicle’s way of warning you that the power assist is failing. By performing the basic tests outlined in this guide, you can pinpoint whether the issue lies within the booster itself or its associated vacuum lines and valves. Given the vital nature of the braking system, if you are uncomfortable performing these mechanical tasks yourself, it is always advisable to consult a professional technician to ensure the repair is completed to factory safety standards. Regular inspections of your vacuum lines and brake components will go a long way in ensuring your vehicle remains safe and reliable on the road.
