When it comes to diagnostic imaging of the heart, cardiologists have two primary tools at their disposal: the transthoracic echocardiogram (TTE) and the transesophageal echocardiogram (TEE). Understanding the differences between Transesophageal Echocardiography Vs Transthoracic echocardiography is crucial for patients and medical professionals alike, as these procedures serve distinct purposes in diagnosing cardiovascular conditions. While both utilize sound waves to create images of the heart, the approach, level of detail, and necessity for sedation vary significantly between the two.
Understanding Transthoracic Echocardiography (TTE)

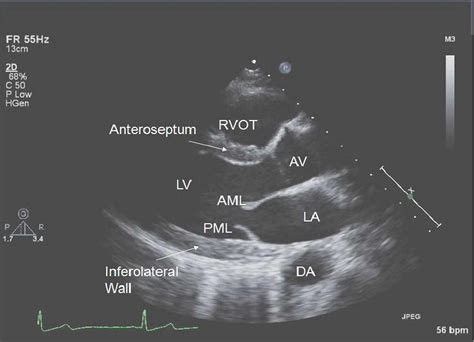

The transthoracic echocardiogram is the most common form of heart imaging. It is a non-invasive, painless procedure where a transducer is placed on the chest wall. The device sends high-frequency sound waves through the skin and chest cavity to visualize the heart's chambers, valves, and surrounding structures.
Because TTE is non-invasive and does not require sedation, it is often the first-line diagnostic tool for evaluating a wide range of cardiac issues, including:
- Evaluating murmurs and heart valve function.
- Assessing the pumping efficiency of the heart (ejection fraction).
- Detecting structural abnormalities or congenital heart defects.
- Monitoring the progression of heart disease.
The Role of Transesophageal Echocardiography (TEE)
A transesophageal echocardiogram is a more specialized, semi-invasive imaging technique. In this procedure, a thin, flexible tube (endoscope) with an ultrasound probe at the tip is passed down the patient's throat and into the esophagus. Because the esophagus sits directly behind the heart, this approach provides a much clearer, high-resolution view of cardiac structures that may be obscured by the ribs or lungs during a standard TTE.
TEE is typically reserved for scenarios where TTE images are inconclusive or when specific parts of the heart need to be visualized with high precision. Common indications for TEE include:
- Detecting small blood clots in the heart, particularly before cardioversion for atrial fibrillation.
- Detailed evaluation of prosthetic heart valves.
- Assessing for infective endocarditis (infection of the heart valves).
- Evaluating complex structural heart issues or aortic conditions.
Key Differences: Transesophageal Echocardiography Vs Transthoracic
The main differentiator between these two procedures is the proximity of the transducer to the heart and the resulting image quality. Below is a detailed breakdown comparing the two diagnostic methods:
| Feature | Transthoracic (TTE) | Transesophageal (TEE) |
|---|---|---|
| Invasiveness | Non-invasive | Semi-invasive |
| Access Point | Chest surface | Esophagus/Throat |
| Image Clarity | Good (can be limited) | Excellent (highly detailed) |
| Sedation Required | No | Yes |
| Preparation | Minimal/None | Fasting (6–8 hours) |
| Patient Comfort | High | Moderate (gag reflex potential) |
⚠️ Note: Because TEE involves the passage of a probe into the esophagus, patients must fast for several hours beforehand to prevent aspiration. A local anesthetic is typically sprayed in the throat, and mild intravenous sedation is provided for comfort.
Diagnostic Precision and Clinical Application
Choosing between the two depends heavily on the clinical question at hand. If a physician needs a quick, general assessment of heart function, a TTE is the gold standard due to its speed, low cost, and lack of risk. However, when the diagnostic stakes are higher, such as looking for a tiny thrombus that could cause a stroke, the superior visualization offered by TEE is indispensable.
In many clinical settings, a TTE is performed first. If the images are suboptimal due to the patient's body habitus, lung interference, or if the findings are ambiguous, a TEE is then ordered to "fill in the gaps." This tiered approach ensures that patients are not subjected to unnecessary, invasive procedures unless the clinical benefit clearly outweighs the risks.
What to Expect During the Procedures
Understanding the patient experience can help alleviate anxiety regarding these tests. During a TTE, the patient lies on their side while a sonographer applies gel to the chest. The procedure generally takes 30 to 60 minutes and is entirely comfortable, though the transducer may apply mild pressure.
The TEE, however, is a more involved process. The patient is monitored closely for heart rate, blood pressure, and oxygen levels. A bite block is placed in the mouth to protect the probe, and the doctor gently guides the endoscope into position. While the procedure itself is brief, the recovery time involves waiting for the sedation to wear off and the gag reflex to return to normal, usually lasting an hour or two at the clinic.
⚠️ Note: Patients undergoing a TEE must arrange for someone to drive them home due to the lingering effects of the sedation used during the procedure.
Assessing Risk Factors and Contraindications
While TTE has virtually no risks, TEE is a medical procedure that carries minor risks, including throat irritation, hoarseness, and, very rarely, esophageal injury or airway complications. Because of this, physicians carefully screen patients to ensure they are appropriate candidates for TEE, taking into account medical history such as esophageal strictures, tumors, or recent throat surgery.
Conversely, TTE is safe for almost everyone. The only potential limitation is the quality of the "acoustic window," which refers to how well the ultrasound waves can penetrate the chest. Factors like obesity, chronic obstructive pulmonary disease (COPD), or post-surgical changes to the chest can sometimes make a TTE image difficult to interpret, necessitating the use of TEE.
Ultimately, determining the best approach in the debate of Transesophageal Echocardiography Vs Transthoracic comes down to the balance between safety and diagnostic necessity. Transthoracic echocardiography remains the cornerstone of cardiac diagnostics, favored for its non-invasive nature and efficiency in routine clinical evaluations. It provides the initial blueprint of heart health and function without requiring sedation or special preparation. However, when the nuances of cardiac structure—such as delicate valve leaflets, small blood clots, or complex congenital issues—require a high-definition view that the surface of the chest simply cannot provide, the transesophageal echocardiogram serves as a vital, high-precision alternative. By utilizing these tools in a complementary fashion, cardiologists can achieve a comprehensive understanding of a patient’s cardiac condition, leading to more accurate diagnoses and more effective, personalized treatment plans. Whether a simple scan or an in-depth look is required, both modalities remain essential components of modern cardiovascular medicine.
