When a patient arrives at the emergency department clutching their chest, time is the most precious resource. Among the various cardiac emergencies, identifying a NSTEMI EKG (Non-ST-Elevation Myocardial Infarction) pattern is a critical skill for healthcare professionals. Unlike the more visually dramatic STEMI, where the EKG shows obvious ST-segment elevation, a NSTEMI is often more subtle, requiring a high index of suspicion, clinical correlation, and careful interpretation of subtle waveforms. Understanding the electrical activity of the heart during this event is not just an academic exercise; it is the cornerstone of life-saving medical intervention.
What is an NSTEMI and Why the EKG Matters
An NSTEMI is a type of heart attack caused by a partial blockage of a coronary artery. Because the blockage is incomplete or intermittent, the heart muscle does not experience the transmural (full-thickness) damage associated with a STEMI. However, the ischemia is significant enough to cause myocardial cell death, which releases cardiac biomarkers like troponin into the bloodstream. The NSTEMI EKG is the initial diagnostic gatekeeper. If the EKG does not show persistent ST-segment elevation, the diagnosis shifts from a STEMI protocol to an NSTEMI protocol, which dictates a different management strategy, often involving antiplatelet therapy and timely angiography rather than immediate fibrinolysis.
Interpreting the NSTEMI EKG Pattern
Recognizing the NSTEMI EKG requires looking beyond the ST-elevation. Clinicians must actively scan the tracing for signs of subendocardial ischemia. While the EKG may occasionally appear normal or show only non-specific changes, there are classic findings that should immediately trigger a cardiac alert. Key indicators often include:

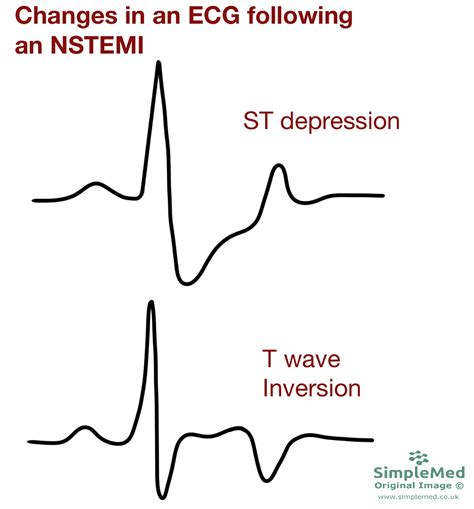

- ST-Segment Depression: Horizontal or downsloping ST-segment depression of at least 0.5 mm in two or more contiguous leads.
- T-Wave Inversion: Dynamic T-wave inversion that indicates myocardial strain or ischemia.
- Transient ST Elevation: Brief periods of ST elevation that resolve quickly, suggesting an intermittent blockage.
- T-Wave Hyper-acuteness: Sometimes seen in the very early stages before other markers become prominent.

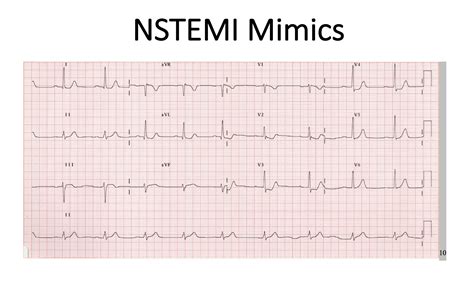

⚠️ Note: Always compare the current tracing with previous EKG records if available. New changes are significantly more concerning than baseline abnormalities such as left bundle branch blocks or old Q-waves.

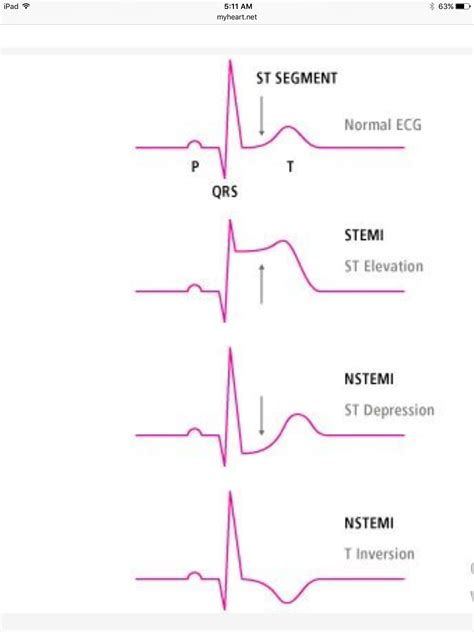

Differentiating STEMI vs. NSTEMI
To provide context for clinical decision-making, it is helpful to contrast the findings. Below is a comparison table that highlights the primary differences in presentation and diagnostic criteria:
| Feature | STEMI | NSTEMI |
|---|---|---|
| Coronary Blockage | Total/Complete occlusion | Partial/Intermittent occlusion |
| EKG Presentation | ST-segment elevation | ST-depression or T-wave inversion |
| Biomarkers | Elevated (Troponin) | Elevated (Troponin) |
| Clinical Urgency | Immediate reperfusion | Risk-stratified management |

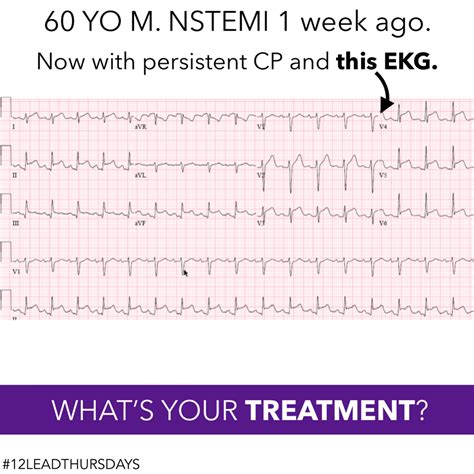

The Role of Serial EKGs
One of the most frequent mistakes in emergency cardiology is relying on a single “negative” NSTEMI EKG. Because the pathophysiology of an NSTEMI involves unstable plaque and fluctuating blood flow, the EKG can evolve rapidly. Current guidelines suggest that if a patient remains symptomatic but the initial EKG is non-diagnostic, a repeat EKG should be performed every 15 to 30 minutes, or whenever there is a change in the patient’s symptom profile. This practice is essential for capturing transient electrical changes that could signal an impending total occlusion.
Managing the Patient Beyond the EKG
While the NSTEMI EKG provides the electrical map, the management plan integrates laboratory data and risk stratification scores. Following the identification of an NSTEMI, the patient is typically managed with a combination of anti-ischemic and anti-thrombotic medications. These include aspirin, P2Y12 inhibitors, anticoagulants like heparin, and statins. Monitoring for complications such as arrhythmias or hemodynamic instability is paramount during the first 24 to 48 hours. Patients are often categorized using the GRACE or TIMI risk scores to determine the urgency of invasive intervention, such as percutaneous coronary intervention (PCI).
Clinical Pearls for Accurate Diagnosis
Precision in interpretation is vital to avoid missing an NSTEMI. When analyzing the tracing, focus on the following details:
- Look at all leads: Do not ignore the posterior or right-sided leads (V7-V9, V3R, V4R) if you suspect circumflex or right coronary artery involvement.
- Assess the baseline: Differentiate between pathological ST-depression and rate-related changes that occur during tachycardia.
- Check the leads: Ensure that the lead placement is accurate, as poor contact or incorrect electrode positioning can mimic ST changes.
- Dynamic Monitoring: Recognize that an NSTEMI EKG is dynamic; if it changes, your clinical plan must change with it.
💡 Note: In the presence of a left bundle branch block (LBBB), the Sgarbossa criteria can be utilized to assist in identifying potential ischemic events that might otherwise be masked on a standard EKG.
Mastering the NSTEMI EKG is an essential competency for anyone involved in acute cardiac care. By understanding that an absence of ST elevation does not equate to the absence of a cardiac emergency, clinicians can improve outcomes for a significant portion of patients presenting with chest pain. Consistent monitoring, high-quality serial EKGs, and a thorough integration of cardiac biomarkers remain the gold standard for navigating the complexities of NSTEMI cases. Ultimately, the ability to read these subtle signs quickly ensures that the patient receives the appropriate medical or surgical intervention required to preserve heart function and prevent long-term complications.
