Interval Qtc

The Interval Qtc, or corrected QT interval, is a vital metric in electrocardiography (ECG) used to assess the heart's electrical activity. Specifically, it represents the time it takes for the heart's ventricles to depolarize and repolarize, adjusted for the patient's heart rate. Because the QT interval naturally shortens when the heart beats faster and lengthens when it beats slower, calculating a rate-corrected interval is essential for accurate clinical evaluation. Understanding this measurement is critical for healthcare professionals, as abnormalities in the Interval Qtc can indicate an increased risk of dangerous cardiac arrhythmias, particularly Torsades de Pointes, which can be fatal.

Table of Contents

Why the Corrected QT Interval Matters

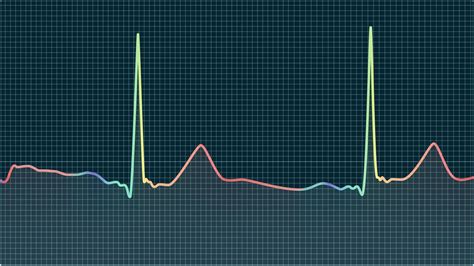

The heart’s electrical cycle is a tightly regulated process. An ECG records this process, and the QT interval is measured from the beginning of the QRS complex to the end of the T wave. However, simply looking at the raw QT interval is misleading if the heart rate is not taken into account. A patient with a fast heart rate will naturally have a shorter QT interval than a patient with a slow heart rate, even if their cardiac electrical function is otherwise identical.

By calculating the Interval Qtc, clinicians normalize these measurements. This allows for a standardized assessment that can be compared against established reference ranges, regardless of the patient's heart rate at the time of the recording. This normalization is fundamental in identifying patients at risk for inherited or acquired Long QT Syndrome (LQTS), a condition that can lead to sudden cardiac death.

Understanding Normal and Abnormal Values

Establishing what constitutes a "normal" Interval Qtc is nuanced, as it can vary based on age and biological sex. Generally, a prolonged QTc interval is considered a significant clinical finding, while a shortened QTc is less common but also clinically relevant. The following table provides a general guideline for interpreting these measurements.

Classification	Men (QTc in ms)	Women (QTc in ms)
Normal	< 440 ms	< 460 ms
Borderline	440 – 460 ms	460 – 470 ms
Prolonged	> 460 ms	> 470 ms

⚠️ Note: These reference ranges are generalizations. Always interpret ECG findings within the context of the patient's full clinical picture, medical history, and specific diagnostic guidelines.

Common Formulas for Calculation

Because there is no single perfect way to correct for heart rate, several mathematical formulas have been developed over the years. The choice of formula often depends on the clinical setting and the patient's heart rate range. The most common methods for calculating the Interval Qtc include:

Risk Factors for QTc Prolongation

Prolongation of the Interval Qtc can be categorized into two main types: congenital (inherited) and acquired. Congenital Long QT Syndrome is caused by genetic mutations affecting ion channels in the heart, while acquired forms are far more common in clinical practice and are usually reversible.

Several factors can lead to an acquired increase in the QTc interval:

Medications: Many drugs, including certain antibiotics (e.g., fluoroquinolones, macrolides), antiarrhythmics, antipsychotics, and antidepressants, are known to prolong the QT interval.
Electrolyte Imbalances: Hypokalemia (low potassium), hypomagnesemia (low magnesium), and hypocalcemia (low calcium) are major drivers of QT prolongation.
Underlying Medical Conditions: Conditions such as bradycardia (slow heart rate), hypothyroidism, myocardial ischemia, and heart failure can contribute to abnormal QTc intervals.
Substance Use: Excessive alcohol consumption and certain drug interactions can exacerbate the risk.

💡 Note: Always conduct a thorough review of a patient's current medication list when identifying a prolonged QTc interval, as stopping a causative agent is often the first step in management.

Clinical Implications and Management

When a patient presents with a significantly prolonged Interval Qtc, immediate clinical evaluation is required. The primary concern is the development of ventricular arrhythmias, most notably Torsades de Pointes, which is a form of polymorphic ventricular tachycardia that can deteriorate into ventricular fibrillation.

Management strategies focus on reducing the risk of arrhythmia and addressing the underlying cause:

Risk Stratification: Determine the severity of the prolongation and assess the patient for symptoms such as syncope, palpitations, or dizziness.
Medication Review: Discontinue or switch any QT-prolonging medications if possible.
Electrolyte Repletion: Correct any underlying electrolyte disturbances, ensuring that potassium, magnesium, and calcium levels are in the optimal range.
Cardiac Monitoring: For patients at high risk, continuous ECG monitoring is necessary to detect arrhythmias early.
Specialist Referral: Consultation with a cardiologist or electrophysiologist may be necessary, especially if the prolongation is persistent or thought to be congenital.

Ensuring Accurate Measurement

Obtaining an accurate measurement is just as important as the calculation itself. Manual measurement errors are a frequent cause of misdiagnosis. Proper technique is essential for reliable data.

Ensure the ECG leads are positioned correctly on the patient.
Measure from the start of the Q-wave to the point where the T-wave returns to the isoelectric baseline.
If the T-wave is merged with a U-wave, the end of the T-wave can be difficult to identify, which may lead to inaccuracy.
When in doubt, use a lead where the T-wave is most clearly defined (often V2 or V3).

⚠️ Note: Always utilize the same leads consistently when tracking QTc changes over time to ensure the measurements are comparable.

Also read: Average Infant Blood Pressure

The Interval Qtc remains a cornerstone of cardiac safety assessment. By correctly measuring and interpreting this interval, clinicians can proactively manage risks associated with drug therapy, electrolyte disturbances, and underlying genetic conditions. While the formulas used to calculate it have limitations, maintaining an awareness of these nuances, combined with a focus on high-quality ECG recording techniques, ensures that this essential measurement continues to provide valuable insights for patient care. As technology continues to improve, automated algorithms for QTc measurement will likely become more sophisticated, yet the fundamental understanding of this metric remains indispensable for any healthcare provider involved in patient safety and cardiovascular health.
