Understanding Ekg placements is a fundamental skill for healthcare professionals, ranging from nursing students to experienced cardiac technicians. An Electrocardiogram (ECG or EKG) is a non-invasive diagnostic tool that records the electrical activity of the heart over a specific period. By placing electrodes on precise locations on the skin, the device translates these electrical impulses into a graphical representation, allowing clinicians to detect arrhythmias, signs of myocardial infarction, or other cardiac abnormalities. Accuracy in electrode placement is paramount, as even minor deviations can lead to diagnostic errors, artifact-filled tracings, or misinterpretations of the patient's heart rhythm.
The Standard 12-Lead EKG Configuration
The standard 12-lead EKG uses ten electrodes to create twelve distinct views of the heart. These electrodes are categorized into two groups: the limb leads and the precordial (chest) leads. The limb leads provide a frontal plane view, while the precordial leads offer a horizontal plane view of the heart's electrical activity. Mastering the Ekg placements for these ten electrodes is essential for consistency and clinical reliability.
Precordial Lead Placement Locations
The six precordial leads (V1 through V6) are placed on the chest in specific anatomical landmarks. Precision is vital, as the heart's electrical vector changes significantly over a short distance. Follow these anatomical guidelines:
- V1: Fourth intercostal space at the right sternal border.
- V2: Fourth intercostal space at the left sternal border.
- V3: Directly between V2 and V4.
- V4: Fifth intercostal space at the mid-clavicular line.
- V5: Anterior axillary line, horizontal to V4.
- V6: Mid-axillary line, horizontal to V4 and V5.
⚠️ Note: Always locate the angle of Louis (the ridge on the sternum) to identify the second intercostal space, then palpate downward to find the fourth and fifth intercostal spaces accurately.
Limb Lead Placement and Signal Integrity

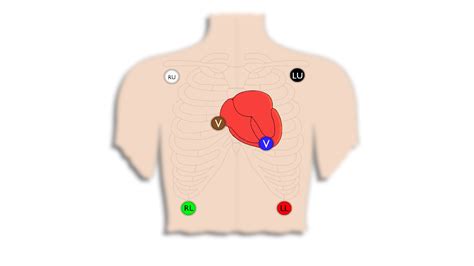

While limb leads are traditionally placed on the wrists and ankles, modern practice allows for electrode placement on the upper arms or thighs, provided the placement is consistent across all limbs. The goal is to minimize interference from muscle movement. Ensuring the skin is clean and dry before applying electrodes is a key step in reducing impedance and improving signal quality.
| Electrode | Standard Placement Location |
|---|---|
| RA (Right Arm) | Right forearm or upper arm |
| LA (Left Arm) | Left forearm or upper arm |
| RL (Right Leg) | Right lower leg or thigh (Reference/Ground) |
| LL (Left Leg) | Left lower leg or thigh |
Tips for Optimal EKG Recording
Achieving a high-quality, clear tracing is often dependent on patient preparation and electrode contact. Poor skin contact can result in "wandering baseline" or electrical noise that obscures the P-waves or QRS complexes. To ensure the best results during Ekg placements, consider the following strategies:
- Skin Preparation: If the patient has significant hair, shaving may be necessary to ensure the adhesive contacts the skin directly. Clean the site with an alcohol pad to remove oils and dead skin cells.
- Electrode Check: Ensure the gel on the electrodes is moist. If the electrodes feel dry, discard them and use a fresh set.
- Patient Positioning: Ask the patient to remain still and relaxed. Anxiety or physical tension can cause somatic tremors, which appear as "fuzziness" on the EKG strip.
- Cable Management: Ensure the lead wires are not stretched or pulled tight, as tension on the wires can cause artifacts on the reading.
💡 Note: For patients with large breasts or obesity, it is acceptable to place V4, V5, and V6 under the breast tissue rather than over it to ensure accurate anatomical representation.
Troubleshooting Common Placement Errors
Even the most experienced professionals can encounter challenges. The most frequent errors in Ekg placements involve the reversal of leads or improper intercostal space identification. Lead reversal, particularly with the limb leads, can lead to inverted waveforms that mimic cardiac events. If an EKG tracing shows a negative P-wave in lead I or a significantly abnormal axis deviation, the first step should be to verify that the RA and LA leads have not been swapped.
Furthermore, misidentifying the intercostal spaces can lead to "high" or "low" placements, which alter the amplitude of the R-wave and the ST-segment representation. If the tracing looks unusual despite the patient appearing stable, re-palpate the anatomical landmarks rather than relying on visual estimation.
The Importance of Patient Communication
Technical skill is only half of the equation; patient comfort and cooperation are equally important. Before beginning Ekg placements, explain the procedure to the patient. Inform them that the machine is only recording electricity from their heart and does not transmit any electricity into their body. Maintaining the patient's privacy by providing a gown or covering them with a sheet during the lead placement process builds trust and helps the patient remain calm, which significantly reduces muscle artifact during the recording process.
Consistent practice and adherence to anatomical standards ensure that EKG readings are reliable and reproducible. By following the systematic approach of identifying limb and precordial placements, preparing the skin, and monitoring for potential artifacts, clinicians can provide high-quality data that directly informs critical life-saving decisions. Whether you are performing a routine check-up or monitoring a patient in an emergency setting, precision in your technique remains the cornerstone of effective cardiac diagnostics. With experience, these steps become second nature, allowing you to focus on the patient’s wellbeing while ensuring the accuracy of the diagnostic data collected.
