In the modern clinical environment, patient safety is the paramount concern, and the integration of advanced monitoring technology has transformed how medical professionals assess physiological status in real-time. Among the most critical pieces of equipment in an operating room, emergency department, or intensive care unit is the Capnography Monitor. This device provides a window into the metabolic and respiratory health of a patient by measuring the concentration or partial pressure of carbon dioxide (CO2) in the respiratory gases. By providing a continuous visual waveform and numerical data, it allows clinicians to detect respiratory depression, airway obstruction, or circulatory collapse long before traditional pulse oximetry might signal an issue.
Understanding the Mechanics of Capnography
The primary function of a Capnography Monitor is to analyze exhaled breath. Unlike pulse oximetry, which measures oxygen saturation in the blood and can be delayed by circulation time, capnography provides an immediate, breath-by-breath analysis of ventilation. The data is presented as an end-tidal CO2 (EtCO2) value, which represents the amount of carbon dioxide at the end of an exhaled breath.
There are two primary methods through which these monitors operate:

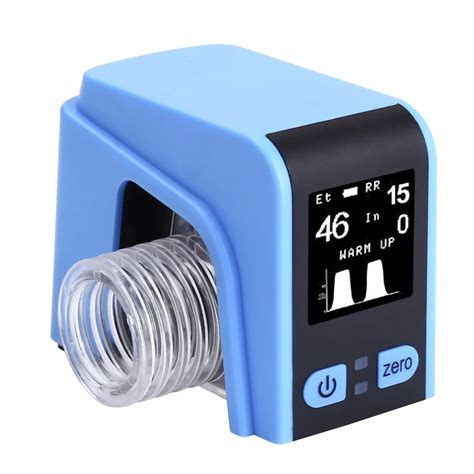

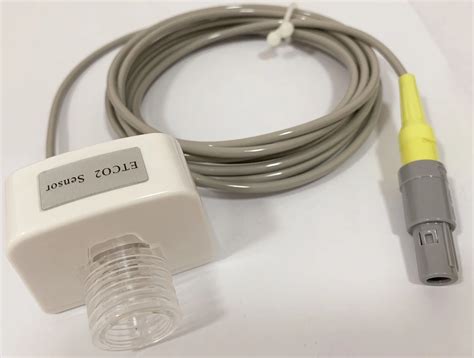

- Mainstream Capnography: The sensor is placed directly into the airway circuit. This provides a very rapid response time as the measurement occurs exactly at the point of exhalation.
- Sidestream Capnography: A small sampling tube draws a portion of the patient's exhaled gas into the monitor for analysis. This is often more comfortable for non-intubated patients but may have a slight delay in signal processing.

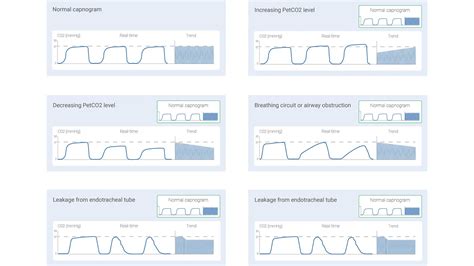

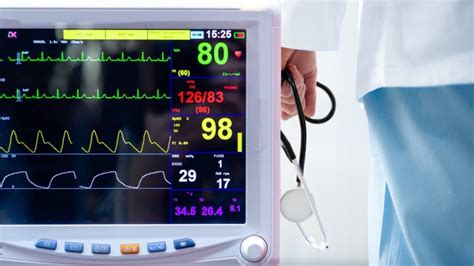

The resulting waveform, known as a capnogram, follows a distinct shape—the box-like morphology. Clinicians look for specific phases in the waveform: the baseline (inhalation), the expiratory upstroke, the alveolar plateau, and the rapid descent during inspiration.
Clinical Applications and Patient Safety
The utility of a Capnography Monitor extends across various medical specialties. Its ability to provide instantaneous feedback makes it an indispensable tool for anesthesia providers, respiratory therapists, and emergency medical responders.
Key clinical scenarios include:
- Procedural Sedation: Monitoring the patient’s respiratory drive while under moderate to deep sedation to catch hypoventilation early.
- Advanced Airway Management: Verifying the correct placement of an endotracheal tube; a persistent EtCO2 reading confirms the tube is in the trachea rather than the esophagus.
- Cardiopulmonary Resuscitation (CPR): Using EtCO2 values to gauge the effectiveness of chest compressions and to identify the return of spontaneous circulation (ROSC).
- Ventilator Management: Assessing the patient’s metabolic state and ensuring the ventilator settings are appropriate for the patient's current CO2 production.
The device serves as an "early warning system." For instance, in a patient receiving opioids, respiratory rate may remain stable while the patient starts to hypoventilate. The Capnography Monitor will demonstrate an increase in the EtCO2 value, alerting the staff to intervene before the patient develops respiratory acidosis or oxygen desaturation.
Interpreting Capnography Data
Understanding what the numbers and waveforms represent is essential for any healthcare provider using a Capnography Monitor. Below is a summary table comparing normal and abnormal findings:
| Waveform/Reading | Clinical Condition | Expected Interpretation |
|---|---|---|
| Normal EtCO2 (35-45 mmHg) | Healthy Ventilation | Normal perfusion and respiration. |
| Hypercapnia (>45 mmHg) | Hypoventilation | Decreased respiratory rate or tidal volume. |
| Hypocapnia (<35 mmHg) | Hyperventilation | Increased respiratory rate or pulmonary embolism. |
| Baseline Elevation | Rebreathing | Exhausted CO2 absorbent or faulty valve. |
⚠️ Note: Always calibrate the sensor according to the manufacturer’s instructions before starting a procedure to ensure the accuracy of the EtCO2 readings and the integrity of the waveform analysis.
Optimizing the Use of Monitoring Equipment
To get the most out of your Capnography Monitor, it is vital to perform regular equipment checks. Ensure that the sampling lines are free of moisture or kinks, as these can easily skew data or cause false alarms. Furthermore, clinicians must be trained to recognize the "shark fin" waveform, which is a classic indicator of obstructive diseases like asthma or chronic obstructive pulmonary disease (COPD).

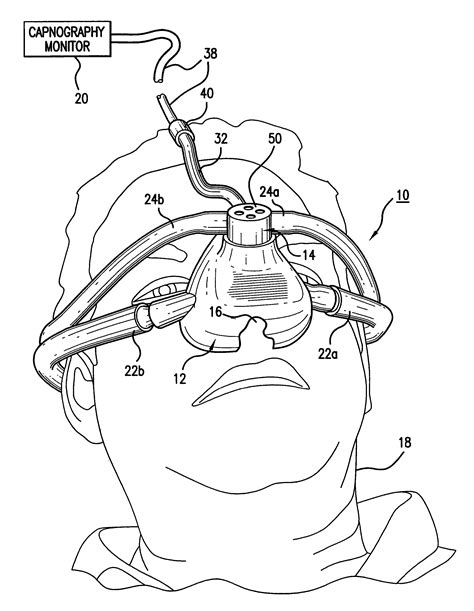

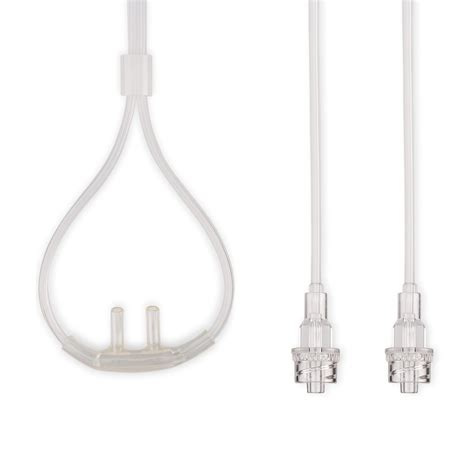

When setting up the device, consider the patient’s clinical status. For intubated patients, mainstream sensors are highly effective, while for patients undergoing sedation through a nasal cannula, specialized dual-lumen cannulas are necessary to provide both supplemental oxygen and CO2 sampling simultaneously.
ℹ️ Note: False alarms can be distracting; ensure that high and low alarm limits are set appropriately based on the patient's baseline vital signs rather than relying solely on factory defaults.
Integrating Technology for Better Outcomes

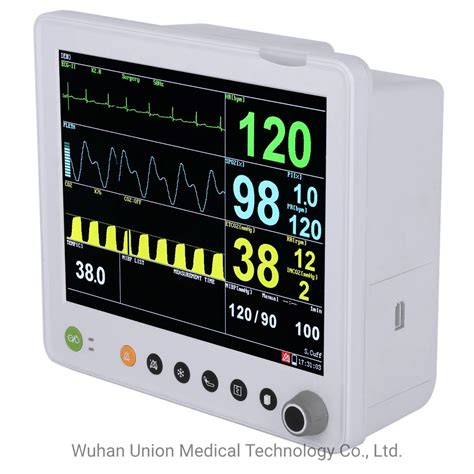

The evolution of the Capnography Monitor has moved toward integration with other bedside monitors. Many modern systems now combine pulse oximetry, electrocardiograms, and capnography into a single interface. This consolidated view allows clinicians to see the relationship between oxygenation (SpO2) and ventilation (EtCO2). This holistic view is critical because a patient can be well-oxygenated but poorly ventilated, or vice versa. By utilizing both parameters, medical teams can create a more complete picture of the patient's physiological status, leading to faster diagnosis and more effective therapeutic interventions during critical moments.
As medical technology continues to advance, the role of these monitors will likely expand into remote monitoring and predictive analytics. For now, the most significant impact remains at the bedside, where the reliable, real-time data provided by the device saves countless lives by identifying respiratory distress in its infancy. Through rigorous monitoring and skilled interpretation of the displayed waveforms, healthcare professionals ensure that respiratory failure does not go unnoticed, thereby upholding the highest standards of patient care in every clinical setting.
