Brugada Syndrome Ecg

Brugada Syndrome is a complex genetic cardiac disorder characterized by an increased risk of sudden cardiac death due to malignant arrhythmias. Often described as a "hidden" electrical abnormality, the condition primarily affects the ion channels in the heart, specifically the sodium channels. For clinicians and patients alike, the Brugada Syndrome ECG pattern is the cornerstone of diagnosis, serving as the most vital diagnostic marker in identifying those at risk. Because the disease often presents without structural heart damage, identifying these unique electrical signatures on a standard electrocardiogram is literally a matter of life and death.

Table of Contents

Understanding the Pathophysiology

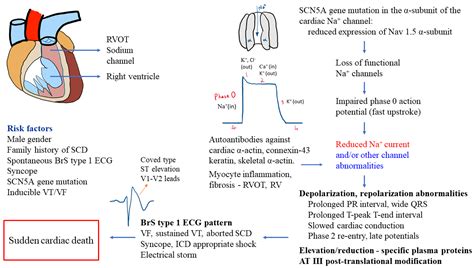

At the molecular level, Brugada Syndrome is caused by mutations in genes responsible for encoding cardiac sodium channels, most notably the SCN5A gene. This disruption leads to a loss of function in the sodium current during the initial phase of the cardiac action potential. Consequently, an electrical heterogeneity develops between the epicardium and the endocardium of the right ventricular outflow tract. This electrical gradient creates the vulnerability for re-entrant arrhythmias, which can degenerate into ventricular fibrillation.

The Diagnostic Brugada Syndrome ECG Patterns

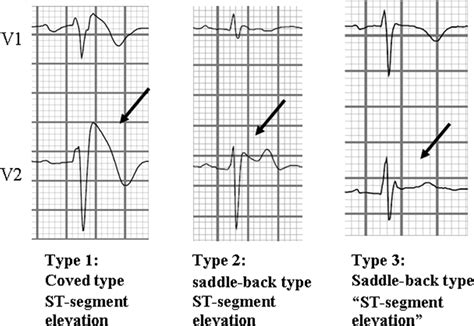

The hallmark of this condition is the ST-segment elevation in the right precordial leads (V1 and V2). These leads are placed in a position that directly observes the right ventricular outflow tract. There are three recognized types of Brugada patterns, though only Type 1 is considered diagnostic.

Pattern Type	ST-Segment Morphology	Clinical Significance
Type 1	Coved-type, ≥ 2mm elevation	Diagnostic of Brugada Syndrome
Type 2	Saddleback-type	Suggestive, requires provocation
Type 3	Saddleback or Coved	Non-diagnostic, warrants follow-up

Clinical Presentation and Risk Stratification

Many individuals with the genetic predisposition for Brugada Syndrome are asymptomatic. When symptoms do occur, they are usually related to rapid, abnormal heart rhythms. Common clinical indicators include:

Syncope (fainting spells) of unexplained origin.
Nocturnal agonal respirations (gasping while sleeping).
Palpitations or lightheadedness.
History of sudden cardiac arrest in a family member under the age of 45.

Risk stratification is essential because not all patients require aggressive intervention. Physicians often utilize electrophysiology studies (EPS) to determine the inducibility of ventricular arrhythmias, although the debate continues regarding the predictive value of this testing in asymptomatic patients.

Also read: Face Works Plastic Surgery & Med Spa

Management and Preventive Strategies

Because there is no definitive pharmacological cure for the genetic defect, management focuses on preventing sudden cardiac death. The primary treatment for high-risk individuals is the implantation of an Implantable Cardioverter-Defibrillator (ICD). This device is designed to monitor the heart’s rhythm continuously and deliver a life-saving shock if it detects ventricular fibrillation.

For patients who are at lower risk or have specific clinical presentations, lifestyle modifications are paramount:

Avoidance of triggers: Certain medications, including specific antiarrhythmics, psychotropic agents, and anesthetics, should be avoided.
Fever management: Fever is a well-known trigger for arrhythmias in Brugada patients. Aggressive control of temperature using antipyretics like acetaminophen is highly recommended.
Dietary awareness: Avoiding excessive alcohol consumption and large, carbohydrate-rich meals can help mitigate the risk of nocturnal arrhythmias.

💡 Note: Always consult the "Brugada Drugs" database or current clinical guidelines before administering any new medication to a patient known to carry the Brugada Syndrome ECG pattern, as certain drugs can exacerbate electrical instability.

The Importance of Family Screening

Since Brugada Syndrome is inherited in an autosomal dominant pattern, it is imperative that family members undergo cascade screening. If a patient is diagnosed, first-degree relatives should be evaluated with a clinical history, a physical exam, and a resting 12-lead electrocardiogram. Genetic testing may also be offered to identify the causative mutation, which can facilitate accurate diagnosis among extended family members who may not show clear ECG manifestations.

The Future of Brugada Research

Current research is shifting toward advanced imaging and mapping techniques to better visualize the right ventricular outflow tract. By using endocardial or epicardial substrate ablation, some specialized centers are exploring ways to eliminate the areas of the heart responsible for the Brugada pattern. While not yet the standard of care for everyone, these advancements offer hope for patients who are not suitable candidates for ICDs or who wish to avoid the long-term complications of implanted devices.

In summary, recognizing the Brugada Syndrome ECG pattern is fundamental to preventing sudden cardiac death in vulnerable individuals. While the diagnosis can be daunting due to its potential for life-threatening arrhythmias, modern medical approaches allow for effective management. Through careful monitoring, the implementation of ICD technology for those at high risk, and strict adherence to drug avoidance protocols, patients can maintain a good quality of life. The dynamic nature of the condition underscores the necessity of continuous vigilance and the importance of family-wide screening. As diagnostic technologies and mapping procedures evolve, the medical community continues to move closer to more personalized treatment strategies for this challenging genetic channelopathy.
