12 Lead Ekg Placement

Accurate 12 lead EKG placement is a fundamental skill for healthcare professionals, acting as the cornerstone for diagnosing cardiac conditions ranging from arrhythmias to acute myocardial infarctions. An electrocardiogram (EKG or ECG) records the electrical activity of the heart over a specific period using electrodes placed on the skin. While the technology behind modern EKG machines is highly sophisticated, the quality of the diagnostic data is entirely dependent on the technician's ability to position these electrodes correctly. Even minor deviations in placement can lead to "artifacts," distorted wave patterns, or clinical misinterpretations that could potentially jeopardize patient safety.

Table of Contents

Understanding the 12-Lead EKG System

A 12-lead EKG does not actually require 12 physical electrodes to be attached to the patient. Instead, it utilizes 10 electrodes—four limb leads and six precordial (chest) leads—to create 12 distinct "views" of the heart. These 12 views are divided into two main categories: limb leads and precordial leads. By looking at the heart from these different spatial angles, clinicians can identify precisely which part of the heart muscle may be damaged, inflamed, or experiencing electrical dysfunction.

Preparation and Patient Positioning

Before beginning the 12 lead EKG placement, ensure the patient is in a comfortable, supine position (lying flat on their back). Proper preparation significantly reduces noise on the EKG tracing:

The Four Limb Leads

The four limb leads are generally placed on the extremities. While they can be placed on the shoulders and hips in emergency settings to reduce muscle artifact, the standard protocol involves placing them on the wrists and ankles.

Right Arm (RA): Right wrist or forearm.
Left Arm (LA): Left wrist or forearm.
Right Leg (RL): Right ankle or lower calf (acts as the ground/reference electrode).
Left Leg (LL): Left ankle or lower calf.

The Six Precordial Leads

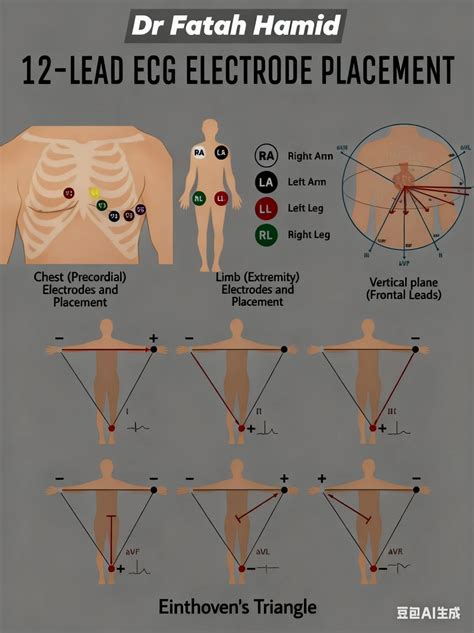

The precordial leads, labeled V1 through V6, provide the "horizontal" view of the heart. Precision is paramount here, as moving a lead even one intercostal space higher or lower can drastically alter the appearance of the QRS complex and the ST segment.

Lead	Anatomical Placement
V1	4th intercostal space, right sternal border.
V2	4th intercostal space, left sternal border.
V3	Directly between V2 and V4.
V4	5th intercostal space, mid-clavicular line.
V5	Anterior axillary line, level with V4.
V6	Mid-axillary line, level with V4.

⚠️ Note: Always locate the 4th intercostal space by first finding the Angle of Louis (the ridge on the sternum) and moving laterally to the right. The space immediately below that ridge is the second intercostal space; counting down helps ensure accurate V1 and V2 placement.

Troubleshooting Common Placement Errors

Even with strict adherence to guidelines, technical errors can occur. Common issues include:

Reversed Leads: The most common error is swapping the RA and LA leads. This results in an inverted P wave and inverted QRS complex in Lead I.
Poor Adhesion: If electrodes are dried out or placed over bony prominences, the signal will be unstable, appearing as a "wandering baseline."
Inaccurate V-Lead Spacing: Placing V4, V5, and V6 too high or too low on the chest wall can lead to false interpretations of ST-segment depression or elevation.

💡 Note: When documenting an EKG, always verify that the patient's name, date, and time are included. If you must adjust a lead significantly due to anatomical abnormalities (like a mastectomy or permanent pacemaker), note this on the strip for the interpreting physician.

Advanced Considerations in Lead Placement

In certain clinical scenarios, standard placement may not provide enough diagnostic data. For instance, in patients suspected of having a right ventricular infarction or posterior wall infarction, clinicians may utilize "modified" 12-lead setups. A right-sided EKG uses the same landmarks as a standard EKG but mirrored on the right side of the chest (V1R through V6R). This ability to adapt while maintaining the core principles of 12 lead EKG placement makes the technician an invaluable part of the cardiac care team.

Also read: What Does The Chemist Do

Furthermore, digital signal processing in modern EKG machines helps filter out some electromagnetic interference, but it cannot fix improper anatomical placement. Clinicians should always visually inspect the leads on the chest before finalizing the test. Ensuring symmetry and following the intercostal landmarks consistently is the best way to guarantee high-quality data. By treating the setup phase with the same clinical rigor as the interpretation phase, healthcare providers ensure that every rhythm strip is reliable, repeatable, and clinically useful for patient management.

Mastering the art of EKG electrode positioning requires both anatomical knowledge and a steady, methodical approach. By consistently applying these standards, you minimize the risk of diagnostic errors and provide the cardiology team with the clearest possible picture of the patient’s cardiac status. Whether you are working in a fast-paced emergency department or a routine clinic, the precision of your electrode placement remains a vital component of high-quality patient care. Always remember that the quality of the EKG tracing is the foundation upon which accurate life-saving decisions are built.
