Understanding Ekg strips is a fundamental skill for healthcare professionals, students, and anyone interested in cardiovascular health monitoring. These graphical representations of the heart's electrical activity provide a wealth of information regarding rhythm, rate, and potential abnormalities. By learning to systematically analyze these traces, you can identify everything from normal sinus rhythms to life-threatening arrhythmias. This guide aims to demystify the complexities of cardiac monitoring and provide you with a structured approach to interpreting findings accurately.
The Basics of Cardiac Electrophysiology

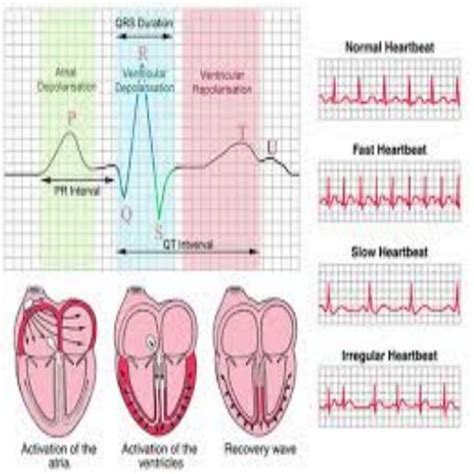

To interpret Ekg strips effectively, you must first understand what you are looking at. An EKG (Electrocardiogram) records the depolarization and repolarization of the heart muscle as it undergoes its rhythmic contraction cycle. Each component of the trace corresponds to a specific electrical event:
- P Wave: Represents atrial depolarization, signaling the start of the cardiac cycle.
- QRS Complex: Represents ventricular depolarization; this is typically the most prominent feature on the strip.
- T Wave: Represents ventricular repolarization, the recovery phase of the heart muscle.
The grid on the paper also holds vital information. The horizontal axis measures time, while the vertical axis measures voltage. Generally, one small box represents 0.04 seconds, and one large box represents 0.20 seconds. Recognizing these standard measurements is crucial for calculating heart rate and interval durations accurately.
Systematic Analysis of Ekg Strips

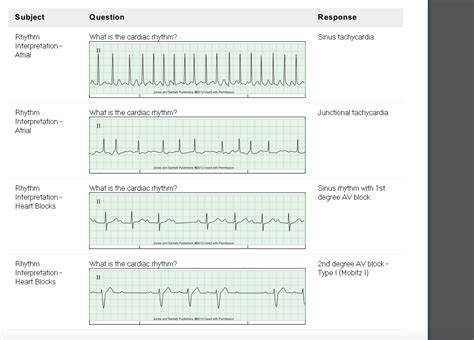

When approaching a trace, consistency is key. Following a step-by-step method ensures that you do not overlook critical details. Whether you are using a digital monitor or printed paper, apply the following analysis framework to every strip you encounter:
- Determine the Heart Rate: You can use the "6-second strip" method (counting QRS complexes in a 6-second interval and multiplying by 10) or the "300 method" for regular rhythms.
- Examine the Rhythm: Look at the regularity of the R-R intervals. Are they consistent, or is there variability?
- Analyze the P Waves: Check for the presence of P waves before every QRS complex. Are they uniform in shape and orientation?
- Measure Intervals: Specifically, evaluate the PR interval (typically 0.12–0.20 seconds) and the QRS duration (typically less than 0.12 seconds).
⚠️ Note: Always ensure the EKG leads are placed correctly on the patient’s chest, as poor electrode contact can cause "artifact," which mimics dangerous arrhythmias.

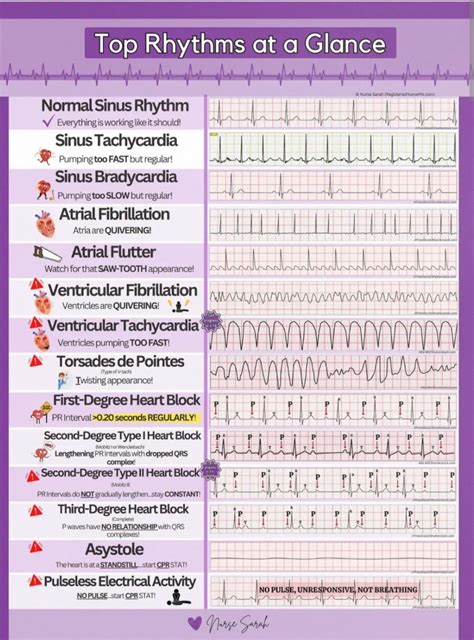

Common Findings and Interpretations
Recognizing patterns in Ekg strips allows for the prompt identification of cardiac conditions. Below is a summary table detailing common rhythm characteristics found in clinical practice:
| Rhythm Type | Heart Rate | Characteristics |
|---|---|---|
| Normal Sinus Rhythm | 60–100 bpm | Regular rhythm, normal P wave and QRS duration. |
| Sinus Tachycardia | >100 bpm | Normal conduction, but elevated rate. |
| Atrial Fibrillation | Variable | Irregularly irregular rhythm, no discernible P waves. |
| Ventricular Tachycardia | >100 bpm | Wide, bizarre QRS complexes; life-threatening. |
Advanced Considerations for Clinical Accuracy
Beyond the basic interpretation, experienced clinicians look for subtler signs within Ekg strips. ST-segment elevation or depression, for instance, can be critical indicators of myocardial ischemia or infarction. Identifying the "J-point" and comparing the ST segment to the isoelectric baseline requires a trained eye and constant practice. Furthermore, the presence of bundle branch blocks can alter the QRS morphology significantly, often hiding other underlying pathologies. Mastery comes from viewing thousands of strips and correlating them with the patient’s clinical presentation.
💡 Note: Never rely solely on an automated EKG machine's interpretation; these tools are known to misdiagnose rhythm strips frequently. Always verify the findings yourself using the manual steps outlined above.
Common Mistakes to Avoid
Even seasoned professionals can make errors when analyzing cardiac data. One common pitfall is failing to account for "wandering baseline," which often occurs due to patient movement or poor skin preparation. Another frequent error is miscalculating the heart rate on an irregular strip by using the simple "300 divided by squares" rule, which is only valid for perfectly regular intervals. Always use the 6-second method for irregular rhythms to obtain a more accurate average rate. Finally, remember that context matters—an "abnormal" finding in a resting athlete may be perfectly physiological, while a "normal" finding in a symptomatic patient could mask silent issues.
The ability to interpret these diagnostic tools is a journey of continuous improvement. By focusing on the foundational waves, maintaining a rigid analytical process, and understanding the significance of interval measurements, you become much more proficient at reading cardiac data. As you gain more experience, the patterns will become second nature, allowing for rapid decision-making in high-pressure environments. Remember that your analysis of these strips is a piece of a larger puzzle, and it should always be considered alongside the physical condition of the patient and their full medical history. Practice regularly, review unusual cases with peers, and stay dedicated to refining your diagnostic skills to ensure the highest standard of patient care.
